Feeders

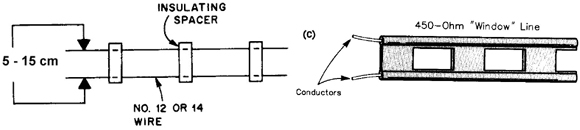

• Two parallel length of wire held apart by insulating spacers (left above) also called open wire or balanced line or by a polyethylene ribbon with windows cut in it (right above) called ladderline
• Characteristic impedance is determined by the diameter of the conductors and the distance between them
