Preventing Line Radiation

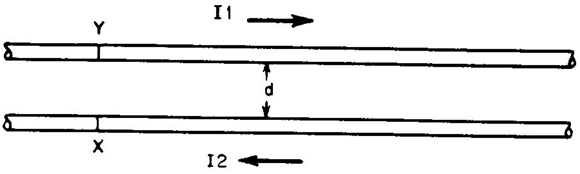

By using two conductors the electromagnetic field from one is balanced everywhere by an equal and opposite field from the other – resultant field is zero
There is no radiation from the feeder with
openwire
or
ladderline
– they are
balanced
lines
